Using Server Name Indication to diagnose broken sites, missed exemptions, and mis-categorized HTTPS traffic

Executive Summary

When an HTTPS site breaks behind a FortiGate, the ticket usually says “SSL is broken.” That is a symptom, not a diagnosis. The fastest way to a real diagnosis is to anchor on the Server Name Indication (SNI) value: the hostname the client sends in cleartext inside its TLS ClientHello. Almost every SSL decision the FortiGate makes, from web filter categorization to inspection exemptions to certificate checks, keys off that value or its relationship to the server certificate.

Objective: Build a repeatable workflow that answers three questions for any failing HTTPS session: what SNI did the client send, what certificate did the server return, and what did the FortiGate decide based on those two.

Target audience: FortiGate administrators, systems engineers, and NOC/SOC analysts who already run SSL/SSH inspection profiles and need a faster path from “the site is broken” to root cause.

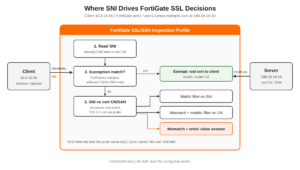

How the FortiGate Uses SNI

SNI is a TLS extension (RFC 6066) that lets a single IP address host many HTTPS sites. The client names the site it wants in the ClientHello, before any encryption is negotiated, so the FortiGate can read it even in certificate inspection mode where nothing is decrypted.

Two protocol changes complicate the picture. TLS 1.3 encrypts the server’s Certificate message, so in certificate inspection mode the FortiGate can no longer read the certificate passively. It opens its own probe connection to the server to fetch it, and that probe is a frequent and overlooked source of breakage. Encrypted Client Hello (ECH) goes further and hides the real SNI inside an encrypted inner ClientHello. The outer ClientHello carries a generic front-end name (often a CDN domain), which is all the FortiGate sees unless ECH is blocked.

Prerequisites and Architecture

Assumed Knowledge

• FortiGate firewall policy and SSL/SSH inspection profile configuration
• The basic TLS handshake (ClientHello, ServerHello, Certificate) and how TLS 1.2 differs from TLS 1.3
• Reading a packet capture in Wireshark

Lab Requirements

• A FortiGate running FortiOS 7.2, 7.4, or 7.6 with CLI access and diagnose rights (super_admin or equivalent)
• A Linux or macOS test client with openssl, curl, and Wireshark
• An HTTPS destination you can hit repeatedly. The examples use www.example.com resolving to 198.18.10.10

Lab Components

Step-by-Step Troubleshooting Workflow

Step 1: Capture the ClientHello and Read the SNI

Goal: See exactly what hostname the client sent and what certificate came back, without trusting what the user or the logs claim.

Action: Run a filtered sniffer on the FortiGate while you reproduce the failure. Verbosity 6 prints full packets with interface names, and the SNI appears in the ASCII column of the ClientHello.

diagnose sniffer packet any 'host 198.18.10.10 and tcp port 443' 6 20 a

For analysis in Wireshark, take the capture from the GUI instead so you get a pcap file, then apply these display filters:

GUI verification: Network > Diagnostics > Packet Capture (7.4 and later). Filter on host 198.18.10.10 and port 443, start the capture, reproduce the issue, and download the pcap.

Classify what you see before touching any configuration:

Step 2: Confirm the Policy and Inspection Path

Goal: Prove which firewall policy matched and whether the session went through the proxy (WAD) or flow-based inspection. The two paths log and fail differently.

Action: Run a filtered flow trace and reproduce the failure once.

diagnose debug reset
diagnose debug flow filter clear
diagnose debug flow filter addr 198.18.10.10
diagnose debug flow filter port 443
diagnose debug flow show function-name enable
diagnose debug flow trace start 50
diagnose debug enable

Stop the trace when you have one reproduction:

diagnose debug disable
diagnose debug flow trace stop

In the output, the Allowed by Policy-10 line confirms the policy. A line showing the session being sent to the application layer means proxy-based inspection is in play. Then check the policy itself:

show firewall policy 10

Look for set ssl-ssh-profile, set webfilter-profile, and set inspection-mode proxy. Because show hides default values, a missing inspection-mode line means the policy is using the default, flow.

GUI verification: Policy & Objects > Firewall Policy. Open policy 10 and confirm the Inspection Mode and the SSL Inspection profile assigned.

Step 3: Read the Proxy Verdict (Proxy Mode Only)

Goal: See the SNI, the certificate check, and the final decision from the WAD process’s point of view.

Action: Filter WAD debug to the test client, enable it, and reproduce.

diagnose wad filter src 10.0.10.50
diagnose wad filter dst 198.18.10.10
diagnose wad debug enable category all
diagnose wad debug enable level verbose
diagnose debug enable

Clean up immediately after the reproduction:

diagnose debug disable
diagnose debug reset
diagnose wad filter clear

Search the output for the hostname and for certificate verification messages. You want to see where the proxy read the SNI, whether it matched an exemption, and whether the certificate check passed or triggered an action.

Flow-mode sessions are inspected by the IPS engine and never appear in WAD debug. For flow mode, rely on the capture from Step 1 and the SSL logs from Step 7.

GUI verification: None. WAD debug is CLI only. The equivalent GUI evidence is the SSL log entry covered in Step 7.

Step 4: Tune the SNI Certificate Check

Goal: Decide how the FortiGate reacts when the SNI does not match the server certificate.

Action: Review sni-server-cert-check in the SSL/SSH inspection profile. Toggling this one setting is often the fastest way to prove or rule out an SNI mismatch as the cause.

config firewall ssl-ssh-profile
    edit "custom-cert-inspection"
        config https
            set ports 443
            set status certificate-inspection
            set sni-server-cert-check enable
            set cert-probe-failure allow
        end
    next
end

While you are in the profile, review the server-side actions that most often explain breakage:

GUI verification: Security Profiles > SSL/SSH Inspection. Open the profile and check the server certificate SNI check and the Common Options actions.

Step 5: Verify That Exemptions Actually Match

Goal: Confirm that a site you exempted from deep inspection is really being exempted.

Action: Build the exemption on something the FortiGate can actually see. Wildcard FQDN exemptions match on the SNI, so they only work when the client sends a readable one.

config firewall wildcard-fqdn custom
    edit "wc-example"
        set wildcard-fqdn "*.example.com"
    next
end
config firewall ssl-ssh-profile
    edit "custom-deep-inspection"
        config ssl-exempt
            edit 1
                set type wildcard-fqdn
                set wildcard-fqdn "wc-example"
            next
        end
    next
end

GUI verification: Security Profiles > SSL/SSH Inspection > Exempt from SSL Inspection.

Step 6: Account for ECH, DoH, and QUIC

Goal: Eliminate the protocol features that hide the SNI or route around TLS over TCP entirely.

Action: Block ECH so browsers fall back to a readable SNI, block DNS over HTTPS so browsers cannot fetch ECH configurations, and decide how QUIC is handled.

config firewall ssl-ssh-profile
    edit "custom-cert-inspection"
        config https
            set encrypted-client-hello block
            set quic inspect
        end
    next
end

If your build cannot inspect QUIC, block UDP/443 in the policy or with application control so browsers fall back to TLS over TCP. Troubleshooting is far more predictable when every session takes the same path. For DoH, use the DNS over HTTPS signatures in application control, or restrict outbound DNS to your own resolvers.

GUI verification: Security Profiles > SSL/SSH Inspection for the ECH and QUIC options (where supported), and Security Profiles > Application Control for the DoH signatures.

Step 7: Turn On the SSL Logs

Goal: Get a persistent, GUI-visible record of SSL anomalies and exemption decisions.

Action: Enable SSL logging in the profile for the duration of the investigation.

config firewall ssl-ssh-profile
    edit "custom-cert-inspection"
        set ssl-anomaly-log enable
        set ssl-exemption-log enable
        set ssl-negotiation-log enable
    next
end

Negotiation logging is heavy, so disable it when you are done. Compare the hostname field in the web filter log with the SNI from Step 1. If the log shows the certificate CN instead of the SNI, the SNI check fell back because of a mismatch.

GUI verification: Log & Report > Security Events > SSL, filtered on destination 198.18.10.10.

Verification and Validation

Reproduce from the test client with a controlled SNI. Comparing the with-SNI and no-SNI results, and checking which CA issued the certificate you get back, tells you immediately whether deep inspection or an exemption is in effect.

# With SNI (normal browser behavior)
echo | openssl s_client -connect 198.18.10.10:443 \
    -servername www.example.com 2>/dev/null \
    | openssl x509 -noout -issuer -subject -ext subjectAltName

# Without SNI (legacy client behavior)
echo | openssl s_client -connect 198.18.10.10:443 \
    -noservername 2>/dev/null \
    | openssl x509 -noout -issuer -subject

# Same test through curl, pinning DNS to the test server
curl -sv --resolve www.example.com:443:198.18.10.10 \
    https://www.example.com -o /dev/null 2>&1 \
    | grep -iE 'issuer|subject|SSL connection'

Expected success output for an exempted or certificate-inspected site looks like this, with a public CA as the issuer:

issuer=C=US, O=Example Public CA, CN=Example TLS CA 2026
subject=CN=www.example.com
X509v3 Subject Alternative Name:
    DNS:www.example.com, DNS:example.com

You are done when all of the following are true:

• The SNI in the capture matches the hostname the user is actually trying to reach
• The flow trace shows the intended policy and inspection mode
• The certificate issuer seen by the client matches the intended treatment (decrypted or exempt)
• The web filter and SSL logs show the expected hostname and action
• Temporary debug and negotiation logging are turned back off

Troubleshooting and Gotchas

Gotcha 1: CDN Sites Break After Enabling Strict SNI Check

Symptom: Random sites fail, often large SaaS or media properties, right after a profile change.

Diagnose: Capture per Step 1 and compare the SNI with the certificate SAN list. CDN edges frequently present a certificate that covers a different name set than the one requested.

Resolution: Set sni-server-cert-check enable (filter on CN on mismatch) or exempt the affected category. Reserve strict for zones where breakage is an accepted trade-off.

Gotcha 2: The Exempted Site Is Still Being Decrypted

Symptom: The client still sees the FortiGate inspection CA as the issuer, even though the site is on the exemption list.

Diagnose: Check the capture for a missing SNI or an ECH outer name. Run the -noservername openssl test to reproduce legacy client behavior.

Resolution: Block ECH and DoH (Step 6), or for clients that never send SNI, switch to an address-based exemption scoped as tightly as possible.

Gotcha 3: TLS 1.3 Sites Fail in Certificate Inspection Mode

Symptom: TLS 1.2 sites work, but some TLS 1.3 sites hang or reset, and SSL anomaly logs reference the certificate probe.

Diagnose: The probe is sourced by the FortiGate itself, so confirm the FortiGate can reach the server on 443 from its own routing table:

execute telnet 198.18.10.10 443
diagnose sniffer packet wan1 'host 198.18.10.10 and tcp port 443' 4 20 a

Resolution: Fix local-out routing or upstream filtering that blocks the probe. If the probe cannot succeed for a specific destination, set cert-probe-failure allow and accept filtering on SNI alone.

Gotcha 4: The Browser Behaves Differently Than curl

Symptom: curl and openssl tests pass, but Chrome or Edge still show the problem, or show no problem at all.

Diagnose: Capture on UDP/443 while loading the page in the browser. Traffic there means HTTP/3 over QUIC is bypassing your TCP-based testing.

diagnose sniffer packet any 'host 198.18.10.10 and udp port 443' 4 20 a

Resolution: Set quic inspect where supported, or block UDP/443 so the browser falls back to TLS over TCP, then retest.

Quick Reference

SSL troubleshooting on a FortiGate stops being guesswork once you anchor on the SNI. Capture it, trace the path, compare it with the certificate, and let the issuer tell you what the FortiGate actually did.
